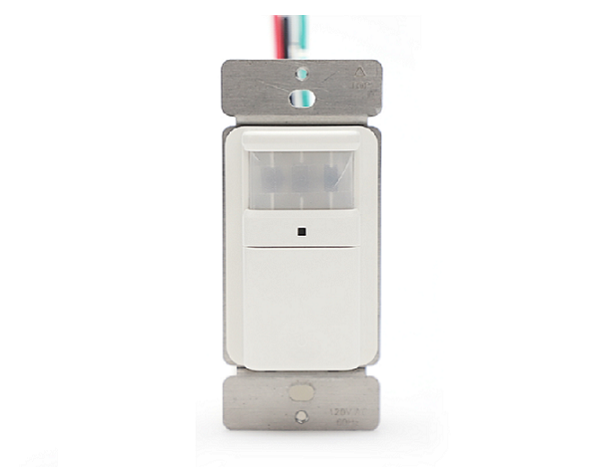

Product Name：SMotion Detector Switch

Model：BAG-001C

Description

1.Two operation modes:Provide Occupancy sensor mode (Auto ON, Auto OFF) and vacancy sensor mode (Manual ON, Manual OFF).

2.Segmented Fresnel lens provides optimum sensitivity and performance.

3.Passive Infrared (PIR) sensor detects motion with 180° field of view.

4.Neutral wire not required, ground wire required for installation.

Certification：cETLus

Standard(s)：UL773A、CSA C22.2 #284

Technical parameter

Size：105*45*44.3mm

Color：Cover:White(Customizable)，Base:Black(Customizable)

Weight：83g

Rated voltage：125VAC、50/60Hz

Tungsten：7-480W

LED：7-150W

Flame Class：UL94-V2

Operating temperature：-32 to 104°F（0 to 40℃）

Cable specification：18AWG

Coverage：180° detection range

Time delay：5Sec-5Min
