| Product Name | 16A 3P INDUSTRIAL SOCKET |
| Model | BAS-030 |
| Appearance |
 |
| Description | 1.Socket is under good protection with waterproof, dustproof and moisture-proof design. |
| 2.Apply high quality nylon and brass materials for durability. |
| 3.Application: :medical equipment, electronic equipment, injection molding machine, gasoline generator, port and terminal equipment, machine room wiring equipment, workshop assembly line, cabinet, etc |
| Size & Color | Size | 62.5*72.5*68mm |
| Color | Blue |
| Material & Surface treatment | Enclosure | PA6 |
|
| Blades of plug | Copper alloy | Acid pickling |
| Weight | 90g |
| Certification | TUV CE |
| Standard(s) | EN60309 |
| Technical parameter | Current:16A |
| Voltage: 250V AC |
| Frequency: 50-60HZ |
| Wiring: screw wiring |
| Dielectric Voltage Withstand：1500V |
| Waterproof：IP44 |
| Combustion resistance：750℃ Glow wire test |
| Cable specifications：φ1.4~φ1.8 single copper wire，STR |

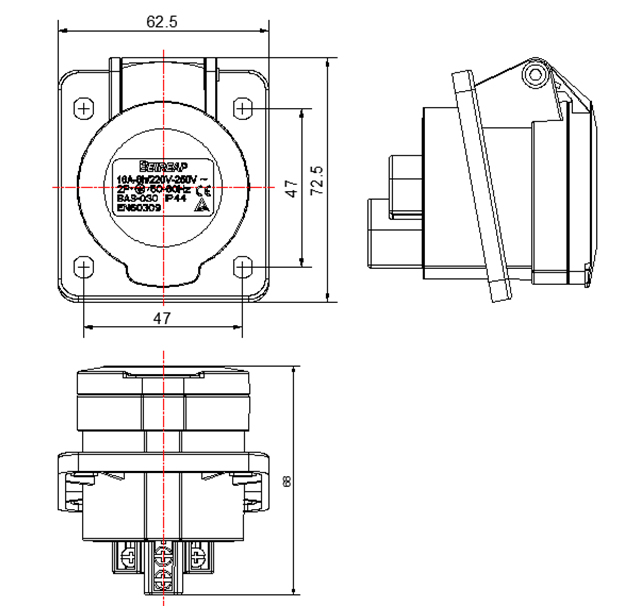

| Dimension & Assembly drawing |
 |
|
|
|
|
|
|
|
|
|
|
|
