32A 3PIN INDUSTRIAL PLUG 4h
| Product Name | 32A 3PIN INDUSTRIAL PLUG 4h | |||
| Model | BCT-005A | |||

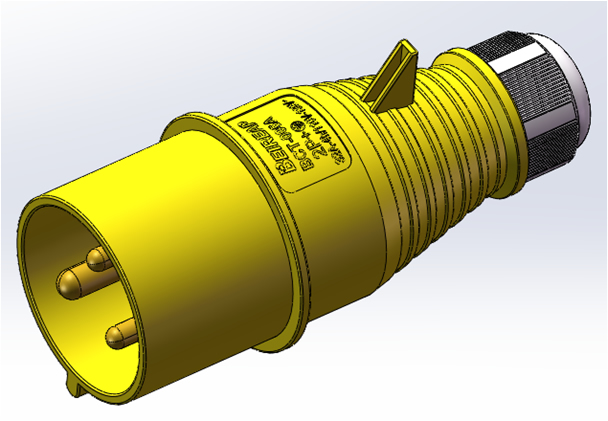

| Appearance |  | |||
| Description | 1. This product is made of high quality environmental-friendly PA6 material which is flame retardant. It also has a good performance at high temperature resistance, leakage prevention and water prevention; 2. The copper pins are less resistant and better conductive.Meanwhile, they have the advantage of less heat releasing, corrosiveness resistance, and longer mechanical life. 3.Current:32A,Voltage:250V | |||
| Feature | 1.Easy wiring; 2.High quality PA6 material with 850℃ professional flame retardant. | |||
| Size | 65*78.4*150mm | |||
| Material & color | Enclosure：Yellow | |||
| Base：Black | ||||
| Lock nut: White | ||||
| Pins：Copper alloy | ||||
| Material & Surface treatment | Enclosure | PA6 | Eco-friendly&flame retardant | |
| Base | PA6 | Eco-friendly&flame retardant | ||
| Inner cover | PA6 | Eco-friendly&flame retardant | ||
| Lock nut: White | PA6 | Eco-friendly&flame retardant | ||
| Pins | Copper alloy | Acid pickling | ||
| Weight | 186g | |||
| Standard(s) | IEC 60309 | |||
| Technical parameter | Voltage：220~250VAC | |||
| Current：32A | ||||
| leakage resistance：>10MΩ | ||||
| Dielectric Voltage Withstand：2000V AC/5S | ||||
| Storage environment | Temperature:5-30℃,Relative temperature: Below 80% No acid, alkali and other corrosive gases in the surrounding air | |||
| Dimension & Assembly drawing |  | |||
