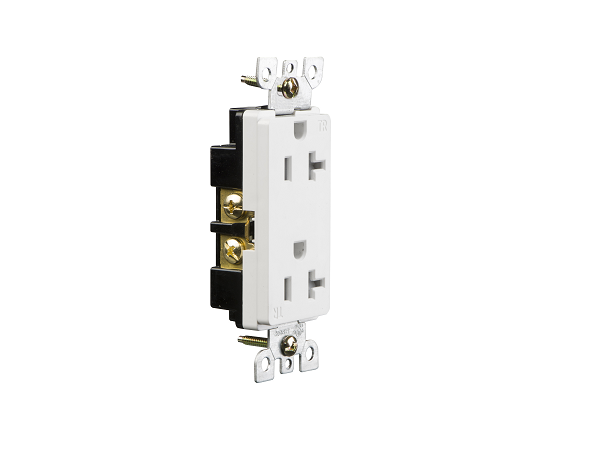

Product Name：5-20R Tamper Resistant Decor Receptacle

Model：YGB-050

Description

1.Heavy-Duty Brass Power Contacts for Maximum Conductivity and Plug Retention.

2.Heavy-Gauge, Rust-Resistant Steel Mounting Strap.

Certification：cULus

Standard(s)：UL498&CSA C22.2 No.42-10

Technical parameter

Size：105*33.6*25.5mm

Color：Cover:White(Customizable)、Base:Black(Customizable)

Weight：59g

Receptacle Rating：20A 125V

Dielectric Voltage Withstand：2000Vac/1Min

Flame Class：UL94 V2

Insertion force: < 178N

Release force: < 67N

Retention force: > 13N
